Plastic Fans

Meeting the needs of your corrosive applications.

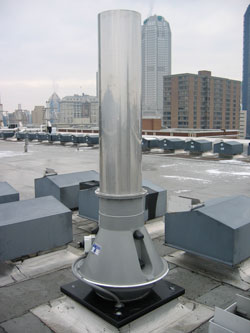

plastic-fanAt Verantis, we understand that sometimes an FRP fan is not needed for your application and that a plastic fan will meet your needs. We also understand that sometimes you need both. That is why we are pleased to provide a new series of Verantis Plastic Fans to meet the needs of your corrosive applications.

Our plastic fans are built to excel in your environment. They can even be used in potentially explosive areas (zones 1 and 2) as our ATEX-certified fans offer maximum levels of safety concerning static charge and sparks.

We offer all standard plastics including: PP (Polypropylene), PPs (Polyphenylene Sulfide), PPs-el (Electrically Conductive Flame Retardant Polypropylene), PVDF (Polyvinylidene Difluoride), PVC (Polyvinyl Chloride), and PE (Polyethylene).

  • You can choose between a direct drive (with/without frequency converter) or a fan belt drive, both with the use of standard 3-phase motors according to IEC.
  • A wide range of hub gasket systems are available from standard versions to gas-tight and water-tight models, we offer solutions based on your individual requirements.
  • Tested parameters and noise level data, coupled with optimized efficiency, are a matter of course according to ErP2013 and ErP2015.

Fan units can be installed in a variety of areas: indoor as well as outdoor, or even on the roof.

The Polypropylene Fans Sweet Spot

  • 50 to 5,000 CFM range
  • Up to maximum of 10” SP

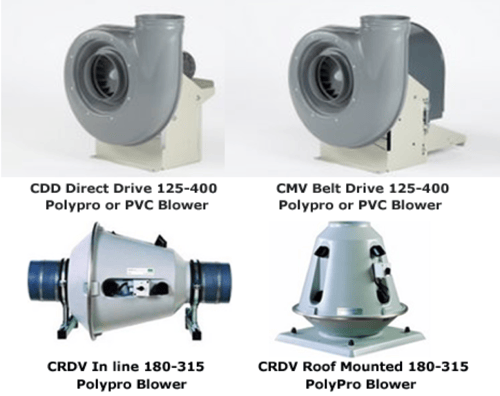

Models Available:

polypropylene-fans



Model Number
Description
Range
# of Models
CDD 125-400
Direct Drive, CW, CCW, 6 discharge positions
50 - 6000 CFM / Max 10" SP
9
CMV 125-400
Belt Drive, CW, CCW, six discharge positions
50 - 6000 CFM / Max 10" SP
9
CRDV 180-315
In-line centrif fan, horizontal or vertical mounting.
200 - 3000 CFM / Max 4.5" SP
6
CRDVR 180-315
Roof mounted, inline centrif fan
200 - 3000 CFM / Max 4.5" SP
6

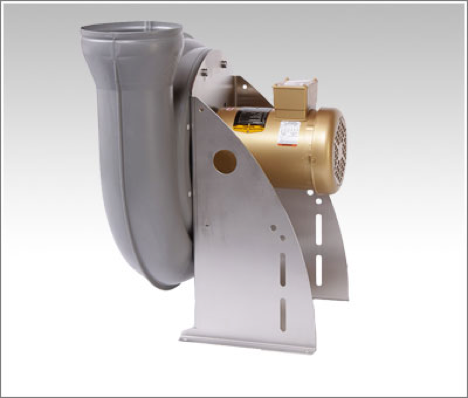

CDD Fans

  • Direct drive centrifugal fans
  • 50-6000 CFM, Max of 10” SP
  • Nine sizes available
  • Both CW & CCW rotations
  • Six discharge positions in both rotations
  • Available in:
    • PVC
    • PP
    • PPs EL (Spark resistant), XP motors available
cdd-fans

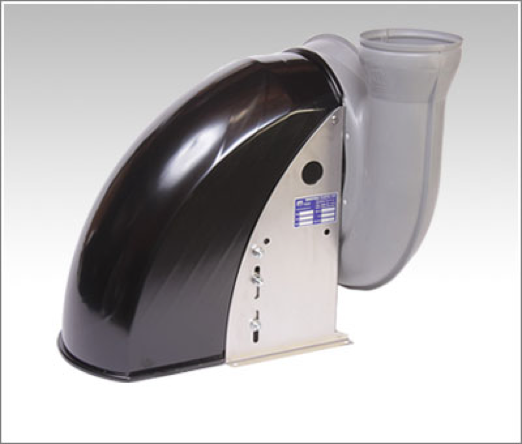

CMV Fans

  • Belt driven centrifugal fans
  • 50-6000 CFM, Max of 10” SP
  • Nine sizes available
  • Both CW & CCW rotations
  • Six discharge positions in both rotations
  • Available in:
    • PVC
    • PP
    • PPs EL (Spark resistant), XP motors available
cmv-fans

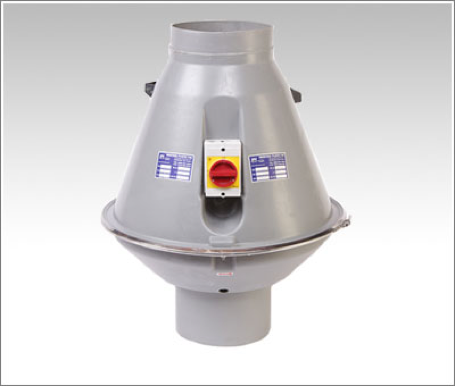

CRDV In-line Fans

  • In-line centrifugal fans
  • 200-3000 CFM, Max of 4.5” SP
  • Six sizes available
  • Can be mounted vertically or horizontally in-line
  • Available in:
    • PP
    • PPs EL (Spark resistant), XP motors available
  • Flex connectors and flanges are available to connect to ductwork
  • Note:  the SS motor mounts for the CRDV Series is in the airstream
crdv-fans

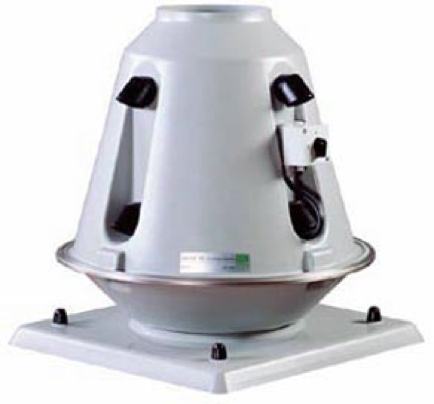

CRDVR In-line Fans, Roof Mounted

  • In-line centrifugal fans
  • Roof mounted, roof covers are available
  • 200-3000 CFM, Max of 4.5” SP
  • Six sizes available
  • Available in:
    • PP
    • PPs EL (Spark resistant), XP motors available
  • Flex connectors and flanges are available to connect to ductwork
  • Note:  the SS motor mounts for the CRDV Series is in the airstream
crdvr-fans
